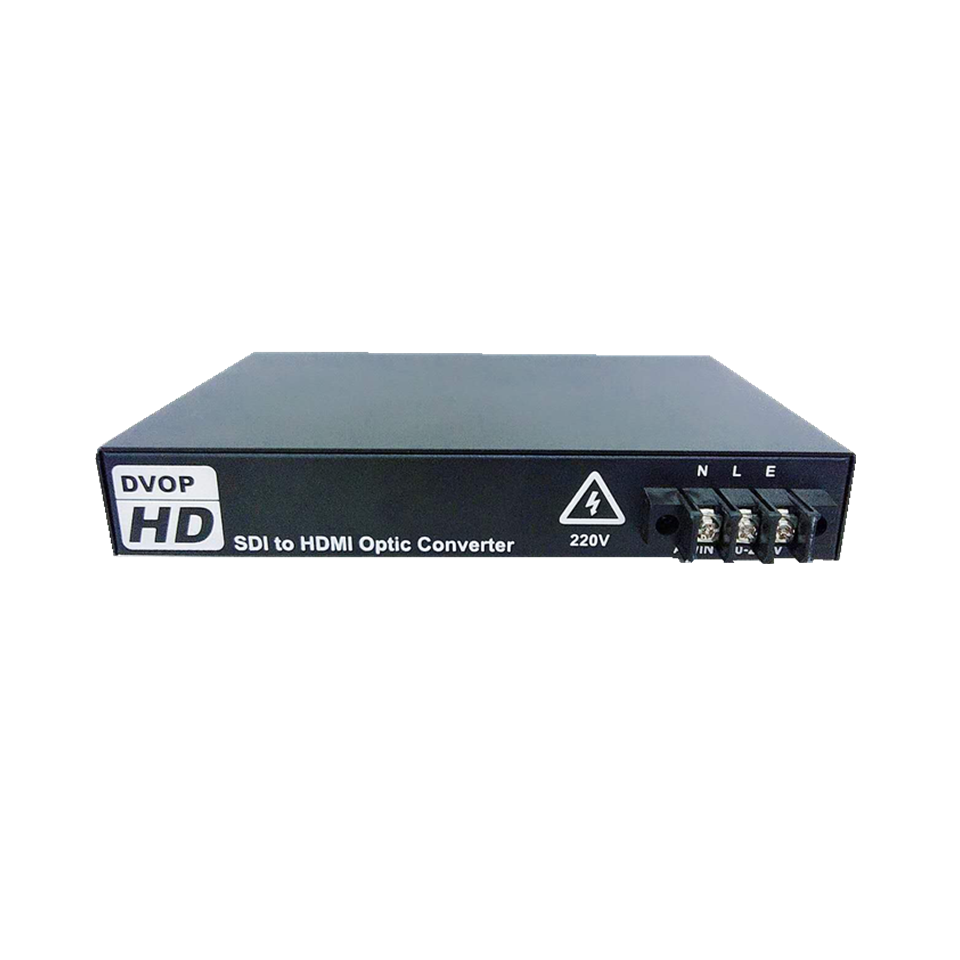

- DVOP-HM-VS1-VH4-EM1Integrated HDMI HD light terminal
DVOP-HM-VS1-VH4-EM1 series is a HD broadcast HDMI video optical terminal with complete core intellectual property rights of Shenzhen Guangxiang. It adopts a special ASIC chip and high-grade EQ circuit to receive a HD optical fiber 3G-SDI video signal with a maximum resolution of 1920×1080P@60Hz. And into high-definition HDMI video signal, the device embedded 1080P high-definition HDMI driver and distribution, support up to 4 1080P HDMI signal output, and have a 3G-SDI video loop out. The use of broadcast grade 3G optical module, support the normal transmission and conversion of ill codes, the received 2.97Gbps from the optical fiber 3G-SDI signal for photoelectric conversion, the use of professional equalization chip, the 3G-SDI serial signal into parallel signal, the use of professional SDI to HDMI large-scale integrated circuit, The HDMI signal is converted into HD HDMI signal, driven by HDMI driver chip, input HDMI distribution matrix, and complete the output of multi-channel HDMI signal. Through optical modules with different transmission distances, long-distance transmission up to 60KM can be achieved. SDI supports all international standard formats such as SD-SDI(270Mbp, SMPTE259M),HD-SDI(1.485Gbps,SMPTE292M), 3G-SDI(2.97Gbps,SMPTE424M), etc. HDMI supports HDMI 1.4 HD and 3D video signal transmission, can backtransmit EDID, support HDCP, resolution up to 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, etc., support 7.1 channel PCM surround sound and compressed audio, Compatible with the transmission of DVI signal, support HDMI interface hot swap, low energy consumption, long distance, no compression, zero delay, plug and play, compatible, can achieve more accurate display.
● Maximum 1920×1080P@60Hz HD HDMI video
output real-time transmission
● Supports up to 4 2K-HDMI video
distribution outputs
● Support with electric plug
● Card rail/wall mount compatible
installation
● Support one 10/100/1000Base-Tx RJ45
electrical port
● High power fence type power terminal,
support 220VAC direct feed
● Power terminal with protective cover to
protect the safety of construction and maintenance personnel
Low in IEEEE 802.3/802.3 standards such as
u/ab / 802.3 802.3 d
● Support MAC address self-learning,
self-update function
● Support network automatic flipping,
network port automatic negotiation
● The access or removal of network
equipment will not affect normal operation
● Adaptive compatibility 720p/60Hz,
1080i/60Hz, 1080p/30Hz,1080p/60Hz, etc
● No compression, HDMI lossless
transmission, all digital, zero delay
● With EDID learning function, to achieve
resolution adaptive between the monitor and the host.
● HDMI interface, SDI, power and other
interfaces with bridge type three lightning/surge /ESD protection design, with
differential mode/common mode protection function.
● Advanced audio, HDMI video, data and
other adaptive technology, automatically compatible with HDMI video, audio,
data, no need to adjust when using
● Support 7.1 channel PCM surround sound
and compressed audio
● Support HDMI 1.4 and 3D, and backward
compatible; Supports HDCP 1.2 and is backward compatible
● Industrial design and device, full
surface mounting technology, long-term stable and reliable operation
No electromagnetic interference (EMI),
radio frequency interference (RFI) and common ground circuits
● With power supply, optical fiber link,
data status, video status, network signal and other perfect indication
● Support dual power supply 1+1 hot backup,
support 24VDC/12VDC/5VDC cross redundancy backup;
● Working environment temperature: Working
environment temperature: -20℃ ~ +70℃.
● Full industrial design, using imported industrial chips and devices
① Optical index
Wavelength: 850/1310nm(multimode); 1260~
1360,1470 ~ 1610 (single mode)
Fiber output power: 0 dBm to -3 dBm/-5 dBm
to -10 dBm
Number of fiber cores: 1 /2 (optional)
Optical interface: LC, SC/FC/ST Optional
Receiving sensitivity: ≤-26dBm
Transmission distance: multi-mode 0-500m,
single-mode: 0-60km
Maximum optical power reserved:
15dbm/20dbm/25dbm/30dbm
② HDMI high-definition digital interface
indicators
Number of HDMI: 1 to 4
Resolution support: 1080 p / 1080 I / 720 p
/ 576 p / 576 I / 480 p / 480 I, etc
Input/Output TMDS signal: 0.5 ~
1.5Vp-p(TMDS)
Input/Output DDC signal: 5Vp-p(TTL)
Input cable length: ≤5m(AWG26 HDMI1.3 cable
standard)
Output cable length: ≤5m(AWG26 HDMI1.3
cable standard)
Support HDMI version: HDMI1.4
Support HDCP version: HDCP1.2
Output impedance: 100Ω
Support video color format: 24 bit/Dark 30
bit/dark 36 bit
Supported audio format: DTS-HD/Dolby-true
HD/LPCM7.1/DTS/Dolby-AC3/DSD
Connector: HDMI-A port
Recommended maximum HDMI output distance:
less than 5 meters, at 1920X1080P@60Hz
③ Ethernet interface specifications
Physical interface: Shield more than 5
RJ-45 seats
Interface rate: 10M/100/1000M Adaptive,
full duplex/half duplex
Interface standards: 802.3/802.3 IEEEE
standards such as u/ab / 802.3 802.3 d
Flow control: IEE802.3X/IEE802.3Z full
duplex flow control and half duplex flow control
Interface sequence: adaptive MDI/MDIX
direct connection and cross-connection mode
④ Feed
Feed interface: with protective fence type
terminal
Feed voltage: 220VAC, optional
12V/24V/48VDC input
Power consumption: ≤5W
⑤ Machinery
Housing: Naturally cooled, no fan, IP40
protection
Mounting method: rail mounting/wall
mounting
Size: 175mm(L) X 120mm(W) x 28mm(H)
⑥ Working environment (outdoor or indoor)
Operating temperature :-20℃ ~ +70℃
Humidity: 0 ~ 95% no condensation
Protection grade: General industry standard
or special designation
