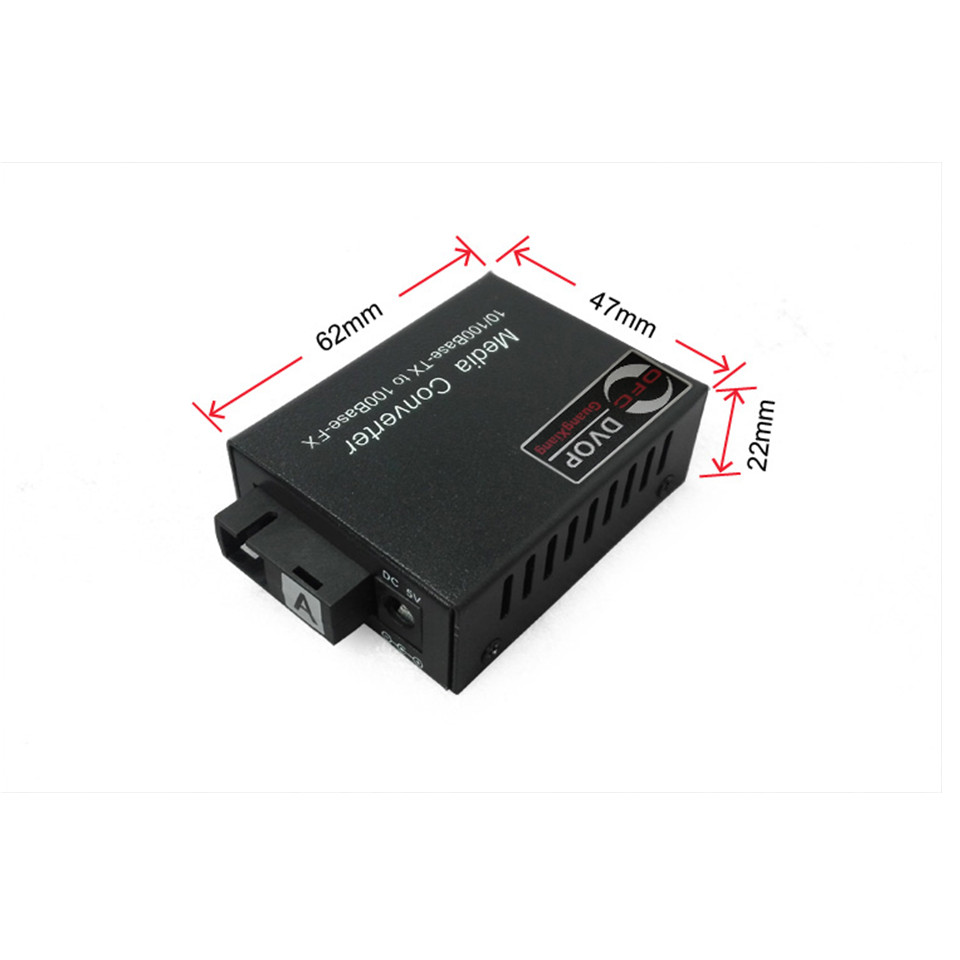

- DVOP-IN-A/B-OTM-EM1 100 megabit 1 optical 1 electric mini micro fiber transceiver
The DVOP-IN-A/B-OTM-EM1 optical fiber transceiver is a modular transceiver for various embedded applications to realize the optical fiber transmission of the original device in one step. Using imported chips and new high-quality optical modules, stable performance and excellent quality. The product has a 100 megabit optical port and a 10/100M adaptive electrical port optical transceiver, which absorbs the advantages of similar products at home and abroad, and the product is more flexible and practical. DVOP-IN-A/B-OTM-EM1 series transceivers are designed for high demand and high reliability engineering applications, using imported chips and new high-quality optical modules, stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability. DVOP-IN-A/B-OTM-EM1 conforms to IEE802.3, IEEE802.3u, 100Base-TX/FX, supports full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, supports ultra-long frame transmission, and is fully compatible with forwarding of various extended protocol data frames. Automatically identifies MDI/MDI-X crossover lines and supports full duplex/half duplex mode. Supports centralized management of rack-card applications, optional network management, real-time monitoring of device running status and parameter performance configuration.
● Ultra-small 100 Mbit transceiver, built-in only 3mm diameter fixed hole can be embedded
● Standard 5VDC power supply on the board, and optional 12VDC or POE power supply modes on the board
● Power supply using crimping terminals, no need to weld wire; Ethernet interface adopts standard RJ45 seat, while supporting line access mode
● Optional rack type, independent and other installation methods at the back end
● 1 10/100M adaptive electrical port and 1 optical port, Achieve convergence and optical signal conversion between an Ethernet electrical interface and optical interface
● Support IEEE802.3X full duplex flow control and half duplex back pressure flow control, support to prevent broadcast storm function
● Support long frame transmission, Fully compatible with all kinds of extended protocol data frames
● Comply with IEE802.3u, IEE802.3z/ab, IEE802.1q, 1000 Base-SX/LX, IEE802.3ah, 10Base-TX, 100Base-TX, 100Base-FX and other standards
● Automatic recognition of MDI/MDI-X cross line, support full duplex/half duplex mode

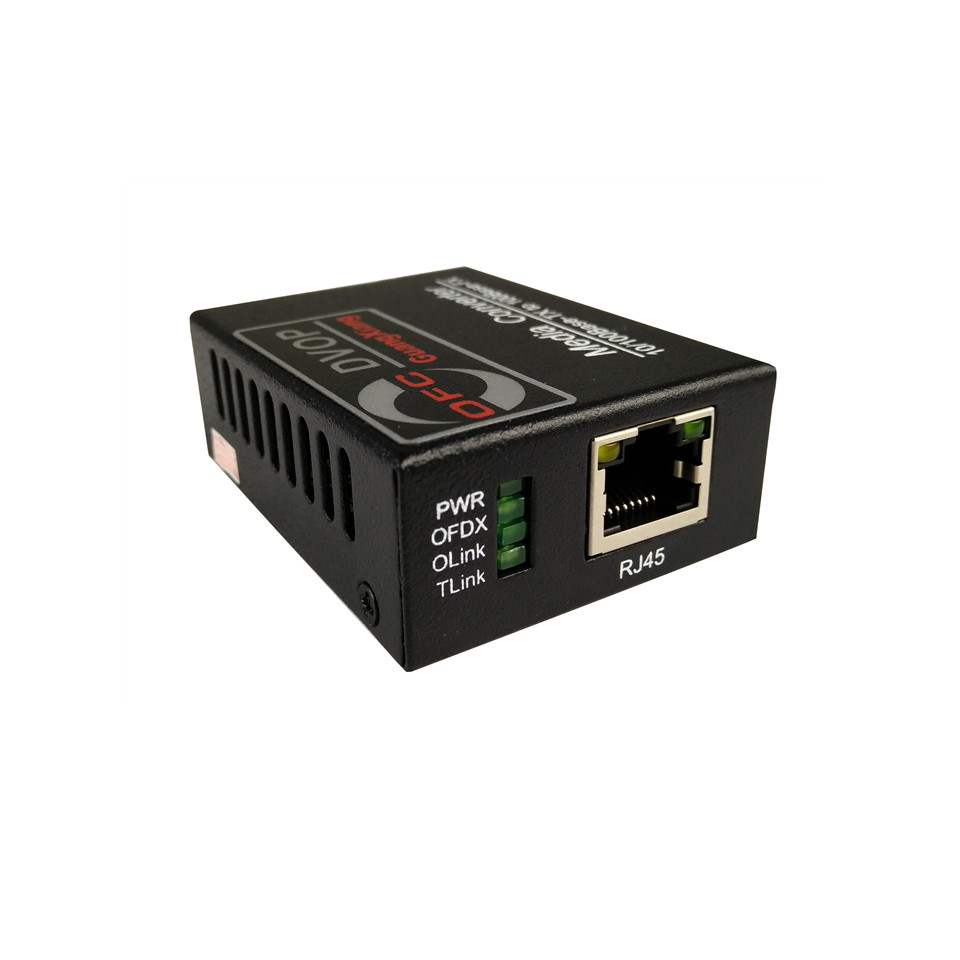

● With perfect feed, optical path, electrical port indicator, working status is clear at a glance
● 1600 byte packet sending and receiving management. Also receive 9k bytes
● Support link failure through the function
● Support centralized rack installation, using 1U rack, a maximum of 16 pieces can be inserted in a single frame
● Fiber mode optional multi-mode/single mode, single fiber/dual fiber; Optical fiber interface optional SC/FC/ST
● Optical transmission distance optional: multi-mode 2Km/5Km; Single-mode 20 km / 40 km, 60 km / 80 km / 100 km / 120 km telecommunication level operation standard, the average trouble-free time in more than 50000 hours of 15.4 KV lightning protection (external power supply, optional)
① Optical port specifications
Wavelength: 1310nm/1550nm
Number of fiber cores: 1, 2 optional
Optical port speed: 155Mbps
Receiving sensitivity: ≤-31dBm
Optical interface type: FC/SC/ST Optional
② Ethernet interface specifications
③ Working environment
Operating temperature: -20℃ ~ +70℃
Relative humidity: 5 ~ 95% no condensation
