- DVOP-IN-A/B-EM4-OM1-SI Industrial card type 1 optical 4 electrical transceiver
DVOP-IN-A/B-EM4-OM1-SI is an industrial fiber transceiver with 1 100M optical port and 4 10/100M adaptive electrical ports. It has a private aluminum alloy shell, corrosion resistance, oxidation resistance, and good three-defense capability. Wall-mounted installation is especially convenient for traffic ITS, high-speed and other high-definition video surveillance, and engineering front-end use. All electrical ports and feeders adopt advanced self-healing multi-stage bridge lightning protection design, equipped with special lightning protection grounding terminals, with high-level lightning, surge, ESD electrostatic protection capabilities. Support 1+1 dual power supply hot backup power supply mode, can adapt to long-term harsh engineering environment applications, support the plug-in application, DVOP-J3 rack, a single rack can achieve high-density 21 slots. Optional network management plug-in, seamless access to the Guangxiang transmission management platform e-MS, can achieve real-time status monitoring of each device, equipment working environment monitoring, optical link status monitoring, and to achieve the configuration of each Ethernet port and other functions, support remote and local computer integrated transmission system network management functions. The open interface design allows integration into higher level network management systems.
● 1 100M optical interface, 4 10/100M
self-applicable Ethernet ports
● Ethernet and power interfaces all adopt
self-healing multi-stage bridge lightning protection design, equipped with
special lightning protection grounding terminals, reaching the leading
lightning protection level in China
● The industry's unique and comprehensive
support for wall-mounted, desktop, plug-in network optical terminal computer
can be managed
● All aluminum alloy shell, wall-mounted
installation, with good three-proof performance
● Industrial design, suitable for harsh
environment, transmission reliability requirements
● Unique power supply 1+1 hot backup power
supply mode, completely eliminate the problem of operation failure caused by
power supply
● Network management, support Port VLAN,
support port bandwidth control, priority, dynamic MAC address table and other
intelligent configuration and provide port security control, broadcast storm
control, port monitoring and other functions
● Non-blocking storage-forward switching
mode, all ports can work in full duplex at full line speed at the same time
● Support priority queue, provide quality
of service assurance QoS
● Support IEEE802.3x full duplex flow
control/half duplex back pressure flow control
● Support IEEE802.1Q VLAN Settings, support
traffic control, effectively suppress broadcast storm
● Has a header blocking (HOL) prevention
mechanism to minimize packet loss
● Support port aggregation and port
isolation, support the physical isolation and logical isolation between each
electrical port
● Support VLAN ultra-long packet
transmission, support QOS, ensure VOIP packet transmission, support STP
spanning tree, form a redundant network
● Electrical port adaptive 10M/100M,
electrical port with automatic MDI/MDIX recognition and flip, adaptive full
duplex/half duplex function
● Support VLAN, QoS, TPv4, TPv6
● Support 2048 bytes of giant frames,
support up to 10K byte of ultra-long packets
● Perfect equipment running status
indicator, each optical port, electrical port has an independent running
indicator, which greatly facilitates the equipment opening
● +5V,+12V,+24V,-48V, 220V various power
supply options, suitable for various control environments
|
Optical index |
Wavelength: |
Single mode :1310/1550nm; DFB:1260~1610nm |
|
Fiber output power: |
0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
|
|
Reception sensitivity: |
≤-26dBm |
|
|
Single wavelength bandwidth: |
155Mbps |
|
|
Transmission distance: |
Single mode: 0-120km |
|
|
Maximum optical power reservation: |
15dbm/20dbm/25dbm/30dbm |
|
|
Fiber optic interface |
Standard SC, FC/ST optional |
|
|
Network Port Specifications |
Physical interface: |
Standard RJ45 |
|
Interface rate: |
10/100M adaptive, full duplex/half duplex |
|
|
Network media: |
Category 5 and above unshielded twisted pair cables |
|
|
Forwarding method: |
Storage forwarding, all ports support line speed forwarding |
|
|
Network protocol: |
IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; |
|
|
Flow control: |
IEE802.3X/IEE802.3Z Full duplex flow control and half duplex flow control |
|
|
Line sequence: |
Adaptive MDI/MDIX direct connection and cross-connection mode |
|
|
Size/power supply/power |
Wall-mounted |
|
|
Size: |
121mm(L)*130m(W)*26mm(H) |
|
|
Power supply method: |
External: 5V2A power adapter; Internal power: 110~220V AC |
|
|
Maximum power consumption: |
3W |
|
|

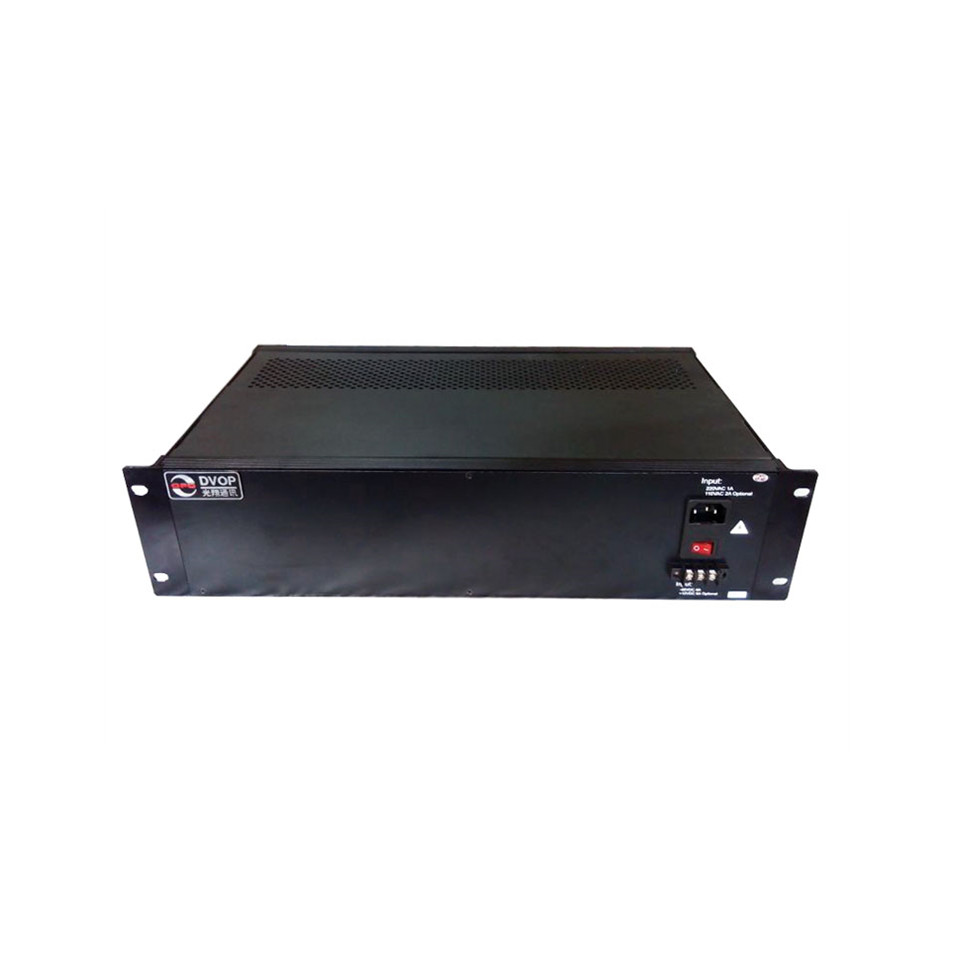

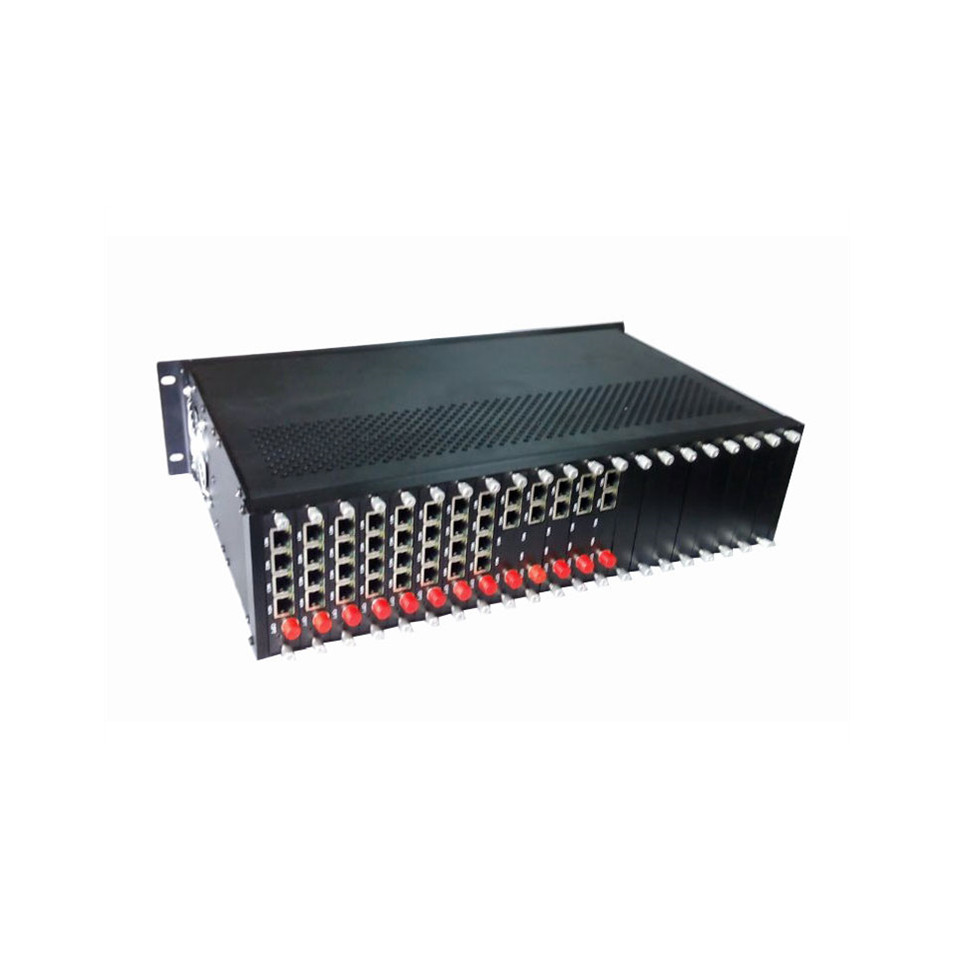

Rack card type: can fit up to 21 |
||
|
Size: |
2.5U standard overhead frame |
|
|
Power supply mode: |
Rack voltage AC-DC 220V/110V, -48V, +24V, +12V optional |
|
|
Maximum power consumption: |
150W(complete frame) |
|
