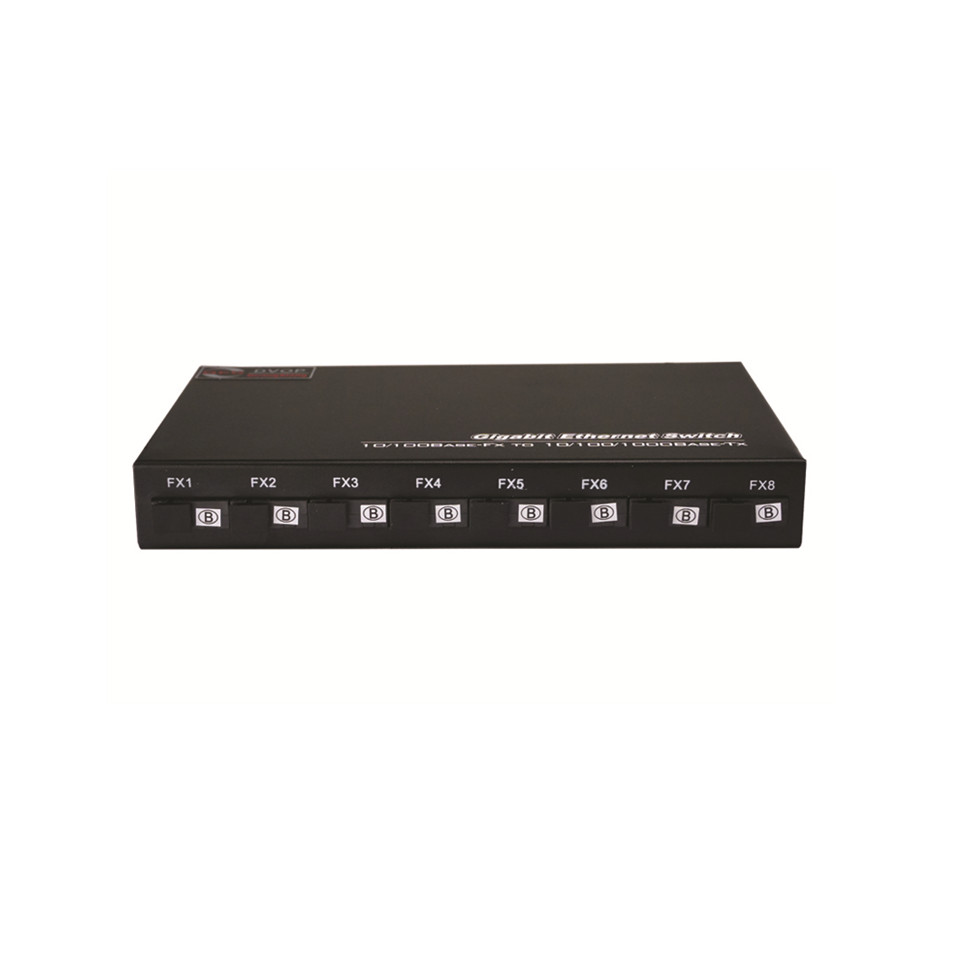

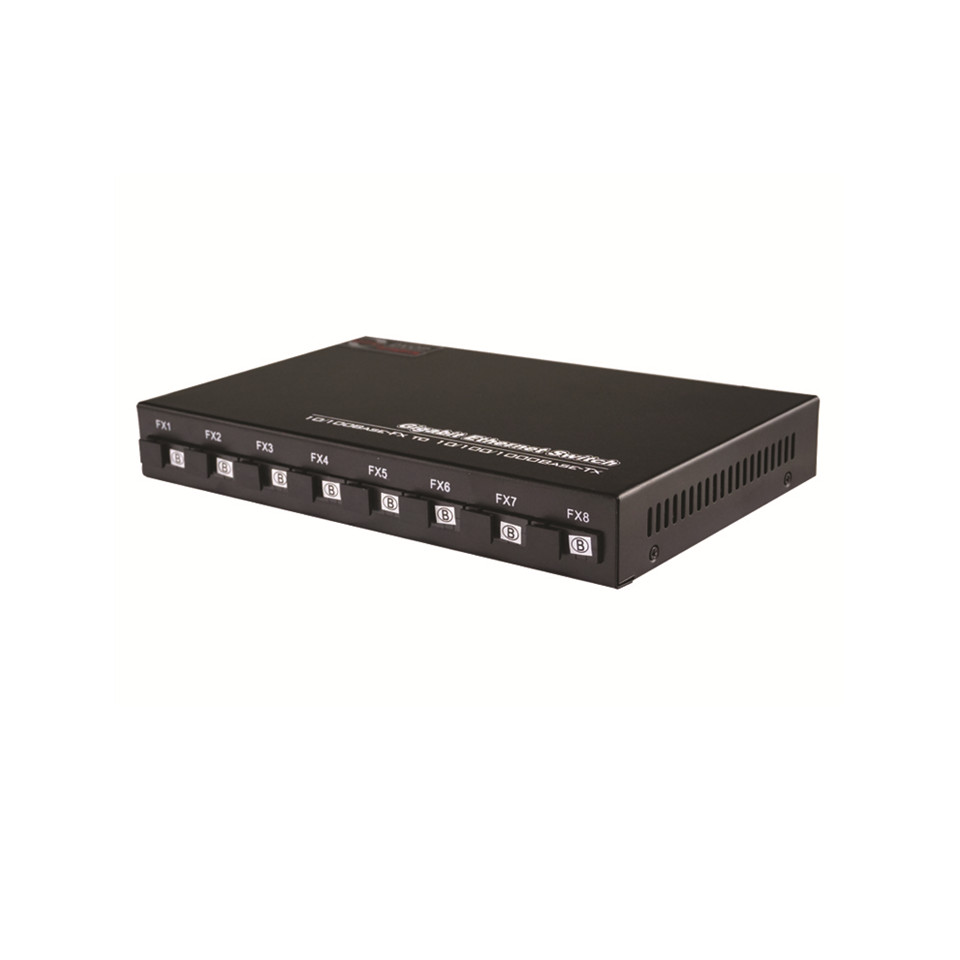

- DVOP-IN-IM-EG2-OM8 8 100 Gbit/s optical 2 Gbit/s Layer 2 optical switch
The DVOP-IN-IM-EG2-OM8 provides two 1000M electrical ports for trunk optical networking and a maximum of eight 100M optical ports or electrical ports for front-end converged branch optical networking. It is used for the local end of optical Ethernet to converge and convert up to 24 optical signals/electrical signals from the front end to the gigabit network. With one device, it can easily realize the convergence interconnection between the 100 Mbit branch optical network of optical Ethernet and the gigabit backbone network, and realize the exchange and aggregation of Ethernet optical signals from the front end. The device greatly simplifies the equipment required for fiber network networking, reduces the cost of network construction, and greatly improves the reliability of network operation. Using 1U overhead standard size, the product has 1+1 dual power supply hot backup power supply mode; It can be managed to realize real-time monitoring of device running status and parameter performance configuration.
● Exchange capacity 5.6Gbps, non-blocking design, support full speed forwarding
● Gigabit optical fiber supports long-distance transmission up to 100 kilometers, and can be directly connected to the metropolitan backbone network
● Provide 802.1x and other ways of user authentication
● Powerful ACL, hardware support L2-L7 layer data filtering
● Port-MAC-IP multi-binding
● Support unique ARP intrusion detection function, can effectively prevent hacker ARP spoofing attacks
● Automatic identification of through cables and cross cables
● Adopt cluster technology, support multiple devices stack, use a unified IP address for centralized management, save address resources
● It can be managed through control port, Telnet, Web, SNMP and other ways
● Support Broad Drictor, HP Open View, Cisco Works 2000 and other general network management protocols
● Automatically detect and suppress broadcast storm, support IGMP message detection, effectively limit the overflow of broadcast messages
● Support full duplex mode and half duplex mode flow control
● Support Ethernet interface with a minimum step speed limit of 64K
● Support IP multicast and QoS
|
Product model |
DVOP-IN-IM3-EG24-OQ4 |
|
Basic Features |
|
|
Fixed electrical ports |
24 10/100/1000M electrical ports |
|
Fixed optical ports |
Four 1G/10G SFP+ ports |
|
Console port |
1 |
|
Processor |
RISC 600MHz |
|
Flash capacity |
8MB |
|
Memory capacity |
64MB, up to 512MB |
|
MAC Address Table |
16K, address self-learning, support IEEE 802.1D standard |
|
VLAN |
4096 IEEE 802.1Q compliant vlans that support port-based vlans and protocol-based vlans |
|
Packet buffer |
64MB |
|
Swap parameters |
Priority queue :8, number of vlans :256, number of multicast groups :256, minimum bandwidth Qos:32K, backplane bandwidth: 512Gbps; Packet forwarding rate: 192.56Mpps; |
|
Product Features |
|
|
Spanning Tree |
Support STP, RSTP, MSTP, ERPS Support PVST/PVST+ |
|
VLAN |
Support for port-based VLAN 802.1Q tagging VLAN Support for Super Vlan Support for Private Vlan Support for GVRP Dynamic Vlan configuration Support for QinQ and flexible QinQ Support for Voice VLAN Support for 4K IEEE 802.1Q standard VLAN |
|
Flow control |
Standards-based IEEE 802.3x flow control uses IEEE 802.1Qbb priority to control flow to support CAR functionality |
|
Broadcast control |
Suppress the broadcast storm and reach a critical point to stop sending |
|
Multicast control |
IGMP Snooping automatically monitors multicast packets and multicast vlans |
|
Multicast routing |
IGMP v1/v2/v3, MLDv2PIM-SM , OLINK&PIM-DMDVMRP (Distance Vector Multipoint Broadcast Routing Protocol) GMRP (Multicast Dynamic Registration Protocol) 4K multicast groups |
|
Port bundling |
Each group has a maximum of 8 LACPs, and supports 128 dynamic LACPs or static aggregation |
|
Port mirroring |
Supports mirroring based on traffic classification and port mirroring |
|
DHCP Features |
Supports DHCP Server, DHCP Client and DHCP relay, supports DHCP Snooping, supports binding based on MAC address , and supports shielding of illegal DHCP servers |
|
NAT function |
Supports static or dynamic NAT address translation |
|
Security Features |
IEEE 802.1x Port authentication, PKI authentication Port Security (Secure port) function Hardware support IP ACL, MAC ACL, Vlan ACL Hardware support port-based user IP+MAC+Vlan ID+ user account Combination Binding Support IP Source Guard Support WEB UI User authentication Remote RADIUS, TACACS+ authentication user hierarchical management and password protection Network Shield technology Security control technology policy control list |
|
Quality of Service |
IEEE 802.1Qau Congestion Mechanism 8 send queues per port Map 802.1p 8 priorities WRED, WFQ, SP and FIFO queue scheduling algorithms Best-Effort Service Differentiated Service Strict Priority Weighted Round R obin) First come first served algorithm TOS re-labeled Traffic Shaping (RTS) |
|
Network management |
SNMP v1/v2/v3Telnet WEB interface Cluster management SSH Fans, temperature, system logs, and hierarchical alarms |
|
Physical Features |
|
|
Power supply characteristics |
Ac 110-240V adaptive, 47-63Hz, 1A/230V, 1+1 RPS power supply hot backup DC-48VDC /24VDC, support cross power supply hot backup |
|
Power |
Up to 15W |
|
Indicator light |
Power indicator, system indicator, connection/transceiver indicator |
|
Ambient temperature/humidity |
Run at -40-80 ° C, store at -40-85 ° C, 5-95% condensation free |
