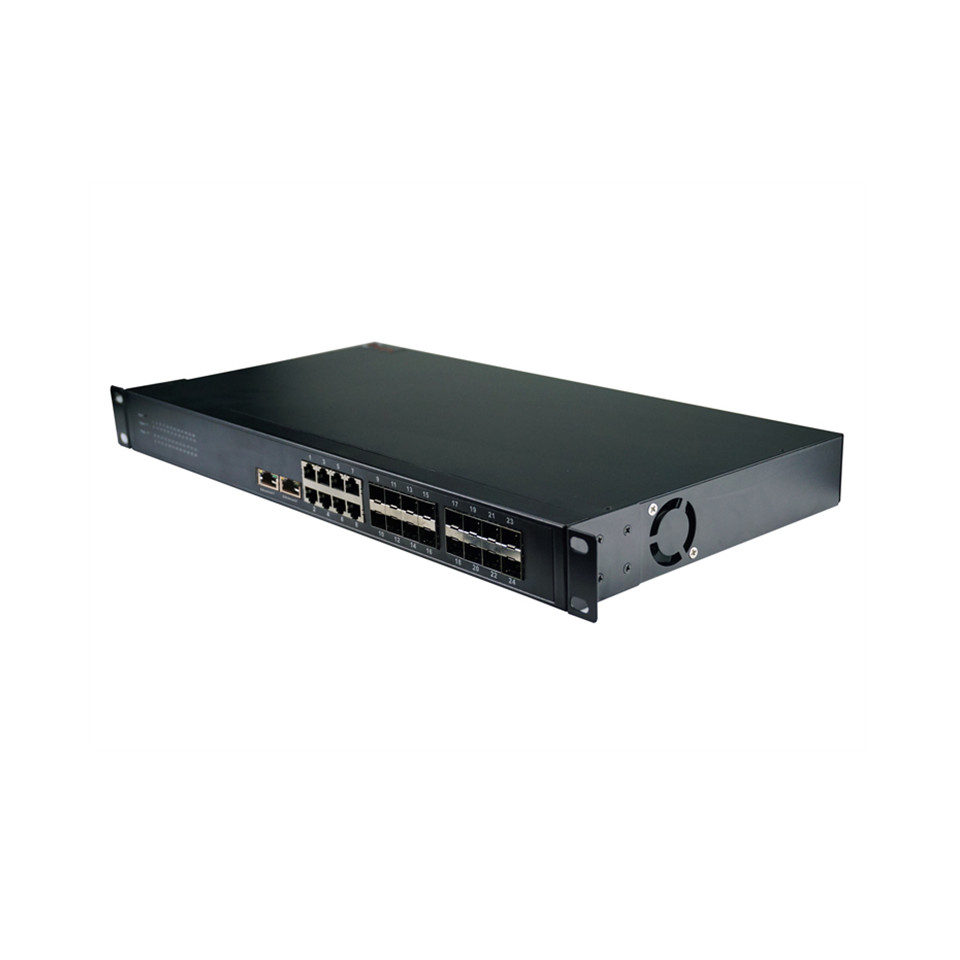

- DVOP-IN-IM-EG10-OG16 All Gigabit 16 optical 10 power management optical switches
The DVOP-IN-IM-EG10-OG16 provides 16 1000M optical ports/electrical ports for trunk optical networking and up to 24 1000M optical ports/electrical ports for front-end converged branch optical networking. It is used for the local end of optical Ethernet to converge and convert up to 24 optical signals/electrical signals from the front end to the gigabit network. With one device, it can easily realize the convergence interconnection between the 100 Mbit branch optical network of optical Ethernet and the gigabit backbone network, and realize the exchange and aggregation of Ethernet optical signals from the front end. The device greatly simplifies the equipment required for fiber network networking, reduces the cost of network construction, and greatly improves the reliability of network operation. DVOP-IN-IM-EG10-OG16 adopts 1U overhead standard size, and the product has 1+1 dual power supply hot backup power supply mode. DVOP-IN-IM-EG10-OG16 can adapt to long-term harsh engineering environment applications, suitable for telecommunications, radio and television, broadband networks, security and other high-performance, high-reliability network environment. The DVOP-IN-IM-EG10-OG16 series can be managed to realize real-time monitoring of device running status and parameter performance configuration.
● Exchange capacity 56Gbps, non-blocking design, support full speed forwarding
● Gigabit optical fiber supports long-distance transmission up to 100 kilometers, and can be directly connected to the metropolitan backbone network
● Provide 802.1x and other ways of user authentication
● Powerful ACL, hardware support L2-L7 layer data filtering
● Port-MAC-IP multi-binding
● Support unique ARP intrusion detection function, can effectively prevent hacker ARP spoofing attacks
● Automatic identification of through cables and cross cables
● Adopt cluster technology, support multiple devices stack, use a unified IP address for centralized management, save address resources
● It can be managed through control port, Telnet, Web, SNMP and other ways
● Support Broad Drictor, HP Open View, Cisco Works 2000 and other general network management protocols
● Automatically detect and suppress broadcast storm, support IGMP message detection, effectively limit the overflow of broadcast messages
● Support full duplex mode and half duplex mode flow control
● Support Ethernet interface with a minimum step speed limit of 64K
● Support IP multicast and QoS
|
Standard configuration: |
16 gigabit SFP optical port +10 Gigabit electrical ports, 1 Console port |
|
Backplane bandwidth: |
52Gbps |
|
Forwarding rate: |
Full line speed filters forward |
|
Exchange method: |
Store and forward |
|
Address Sheet: |
8K |
|
Flow control: |
Half duplex using back pressure, full duplex using IEEE802.3x |
|
Broadcast control: |
Suppress the broadcast storm and reach a critical point to stop sending |
|
Multicast control: |
IGMP message automatic monitoring |
|
Service quality: |
4 queue priorities with 802.1p support |
|
Port bundling: |
Each group has a maximum of 8 ports, and supports 8 ports at the same time, dynamic LACP or static aggregation |
|
Stacking: |
Cluster-style |
|
Bridging: |
IEEE 802.1D-1998 Spanning Tree, Connection Path Backup, IEEE 802.1w (RSTP), and IEEE 802.1s (MSTP) |
|
VLAN: |
Support port-based VLAN, 802.1Q tagged VLAN, GVRP dynamic VLAN configuration |
|
Number of vlans: |
4K arbitrary division |
|
Size: |
442*315*44mm |
|
Power supply method: |
Ac 110-240V adaptive, 47-63Hz, 1A/230V |
|
Indicator light: |
Power indicator, system indicator, connection/transceiver indicator, 10/100M indicator |
|
Ambient temperature/humidity: |
Run -40-70 ° C, store -45-85 ° C, 0-90% no condensation |
