- 8x8 HDMI Matrix
Our HDMI distributor, switcher, network cable extender, matrix, converter and other products are designed to make your audio and video equipment more convenient to use, more comfortable, more efficient, more energy saving.

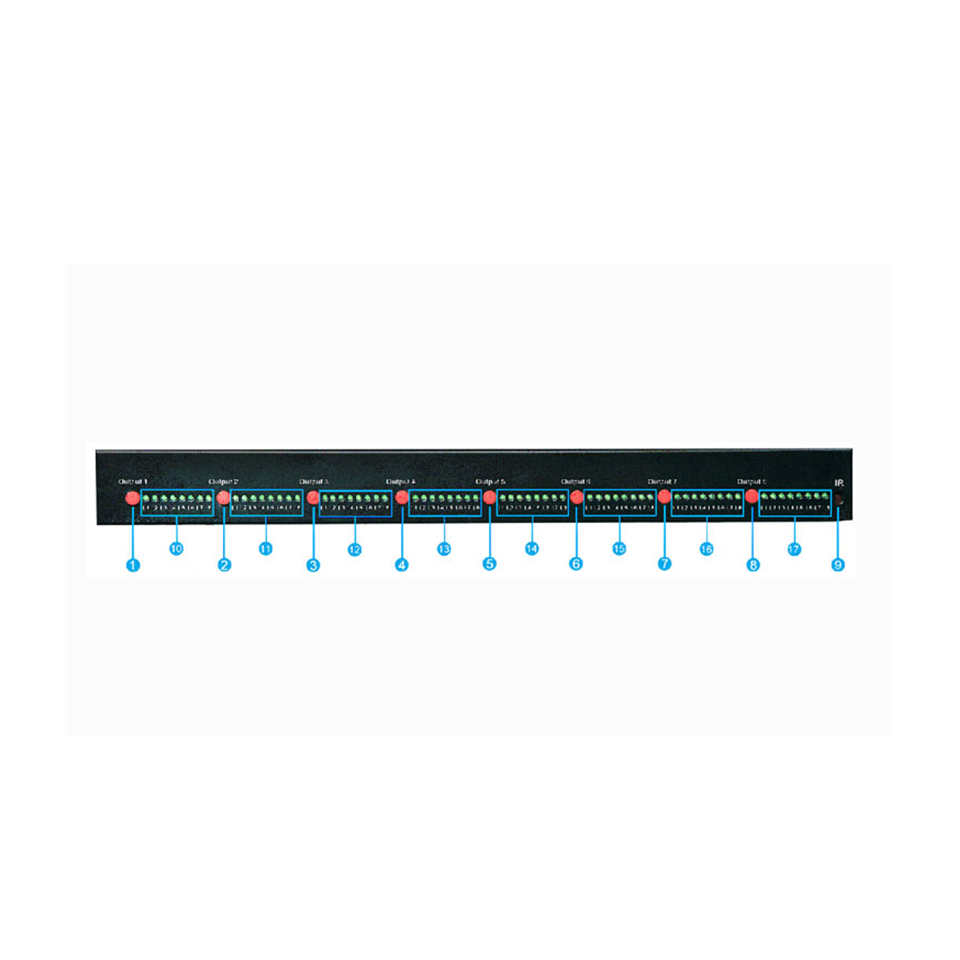

This 8x8 HDMI matrix can connect eight HD signal sources and eight HD signals at the same time. It can easily switch or distribute eight HD signals freely among eight HD signal compatible monitors or projectors. In addition, connect its port with a high-definition cable to amplify the HDMI signal.
● Eight HDMI signal inputs are switched or
allocated to eight display devices that support HDMI signal input
● Support HDMI 1.3 and HDCP1.4
● Support true color 12 bits
● Support Blu-ray
DVD24/50/60fs/HD-DVD/xvYCC
● Support audio format
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
● Support signal timing reordering
● Using AWG26 HDMI standard cable, input
transmission distance up to 10 meters, output transmission distance up to 20
meters
● The input side can be switched remotely
by infrared
● Through RS-232 control, the machine can
be upgraded software, and the signal input and output can be switched through
the computer
● No signal loss
|
HDMI resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Video formats supported |
12bit |
|
Audio format support |
DTS-HD/Doldy-trueHD/DTS/Doldy-AC3/DSD |
|
Maximum transfer rate |
2.25 Gbps |
|
Input/output TMDS signal |
0.5~1.5Volts p-p |
|
Input/output DDC signal |
5Volts p-p (TTL) |
|
Input cable length |
≤15m HDMI AWG26 |
|
Output cable length |
≤20m AWG26 HDMI standard cable |
|
Maximum working current |
2A |
|
Power Adapter Specifications |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/5A |
|
Operating temperature range |
(-15 to +55℃) |
|
Operating humidity range |
5 to 90%RH (No Condensation) |
|
Size |
435 x184 x 16 (mm) |
|
Weight |
1944g |
