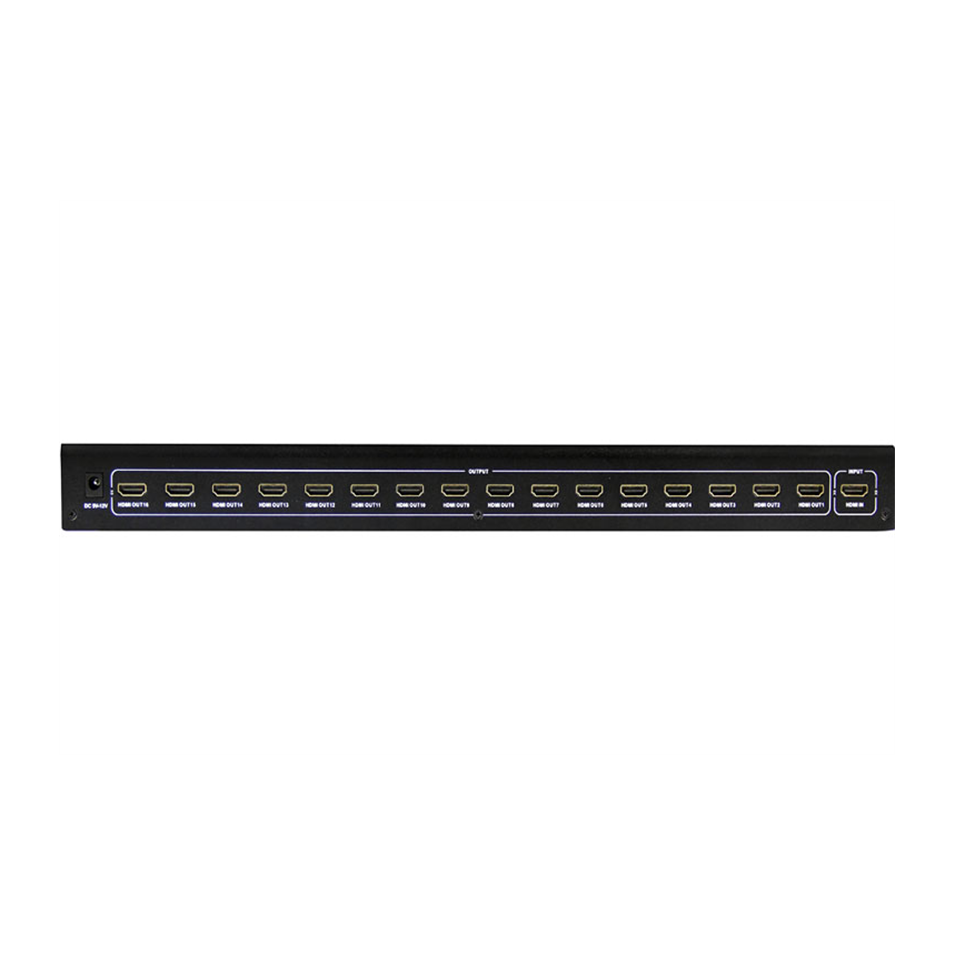

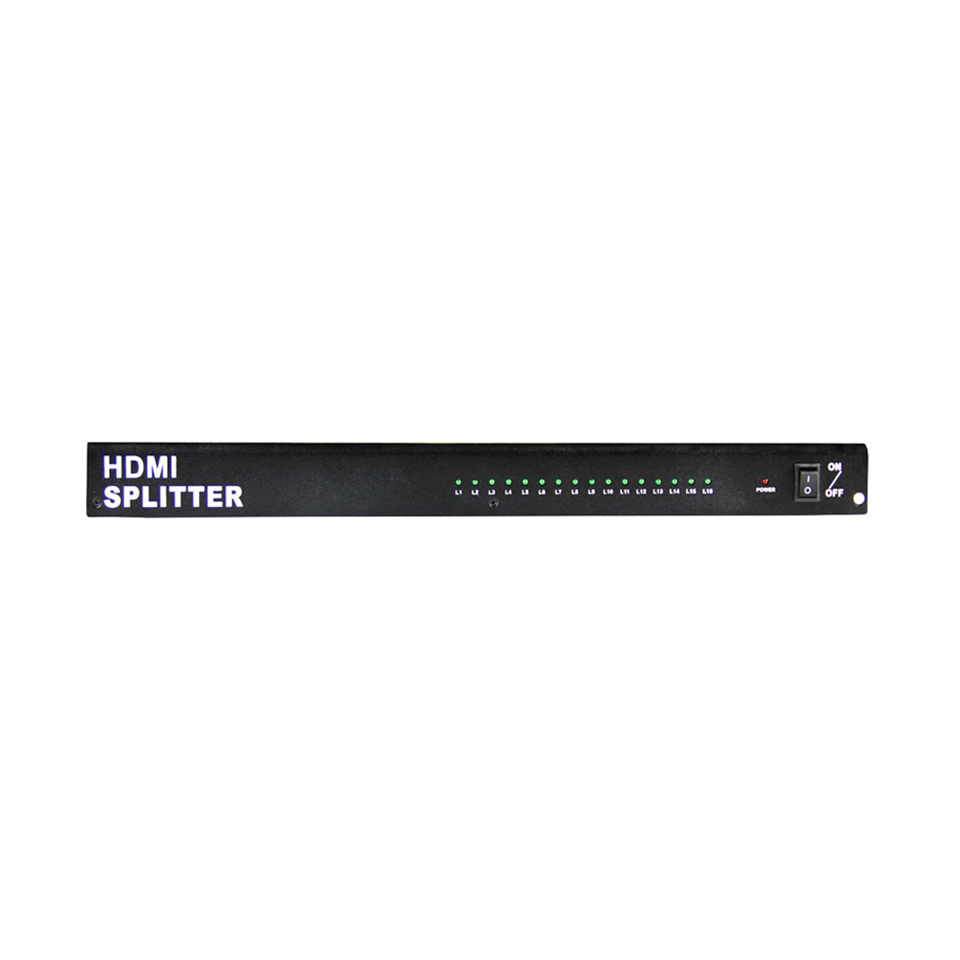

- 1X16 HDMI distributor
This 1X16HDMI splitter can connect 1 HD signal source to 16HD display terminals. It can easily distribute the HD signal generated by 1 HD signal source to 16 high-definition signal supporting monitors or projectors. In addition, when it is connected to the signal output of an HDMI cable, the HDMI signal can be amplified. This HDMI splitter can support all resolutions up to 1920X1080/60HZ.
● Support HDMI1.4a version;
● Support 3D video format;
● Support a maximum resolution of 1920X1080/60HZ;
● The TMDS clock is 225Mhz when the maximum speed is 2.25G;
● Support 8/10/12 bit dark colors;
● Support the use of standard AWG26 cable, input transmission distance of up to 15 meters, output transmission distance of up to 25 meters
● Support A single signal display, allocated to multiple outputs, such as input to DVD players, A/V receivers, set-top boxes
● 12V/2A power adapter
|
HDMI version |
HDMI 1.4a |
|
HDMI resolution |
Supports up to 192*1080/60Hz |
|
Video formats supported |
8/10/12-bit dark colors |
|
Audio formats supported |
DTS-HD/Doldy-trueHD/DTS/Doldy-AC3/DSD |
|
Maximum broadband transmission |
225MHz |
|
Maximum transfer rate |
2.25 Gbps |
|
Input cable length |
≤15 m AWG26 HDMI standard cable |
|
Output cable length |
≤ 25m AWG26 HDMI standard cable |
|
HDMI input port |
1 |
|
HDMII output port |
16 |
|
Maximum working current |
1.35 A |
|
Power Adapter Specifications |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A |
|
Operating temperature range |
(-15 to +55℃) |
|
Operating humidity range |
5 to 90%RH (non-condensing) |
|
Size |
460 x 150 x 40 (mm) |
|
Weight |
1.68 kg |
