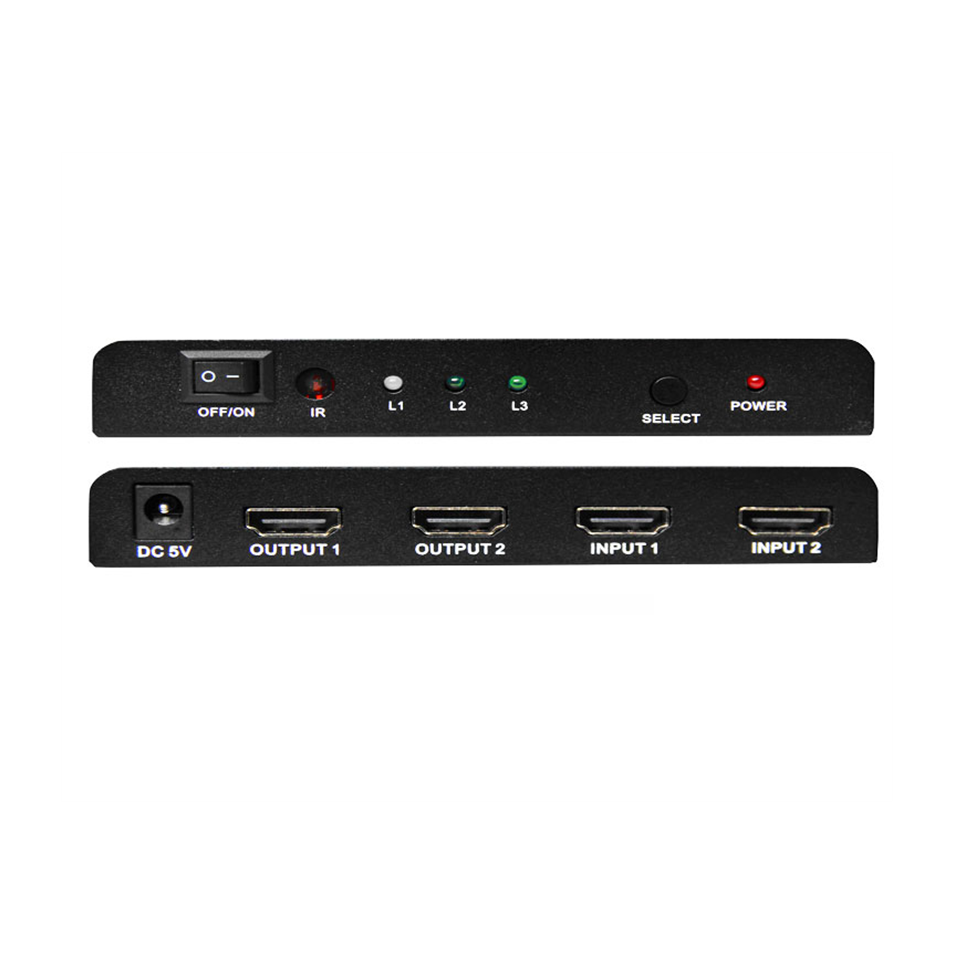

- 2x2 HDMI Switching distributor
This 2X2 HDMI switching splitter connects 2 HD signal sources to 2 HD display terminals. It can easily distribute or switch HD signals generated by 2 HD signal sources to 2 HDTVS or projectors that support HD signals.
In addition, the HDMI output can be amplified by the HDMI signal to increase the transmission distance of the output signal. The two signal sources can be switched arbitrarily by pressing a button or remote control. The product can support high-definition video formats with resolutions up to 1080P/60Hz.
● Support HDMI 1.4A version
● 3D video format is supported
● Support a maximum resolution of 1080p/60Hz
● The TMDS clock is 225Mhz when the maximum speed is 2.25G
● Support 8/10/12 bit dark colors
● Support the use of standard AWG26 cable, input transmission distance of up to 15 meters, output transmission distance of up to 25 meters
● Support A single signal display, allocated to multiple outputs, such as input to DVD players, A/V receivers, set-top boxes
● 5V/3A power adapter
|
HDMI version |
HDMI 1.4a |
|
HDMI resolution |
Supports up to 192*1080/60Hz |
|
Video formats supported |
8/10/12-bit dark colors |
|
Audio formats supported |
DTS-HD/Doldy-trueHD/DTS/Doldy-AC3/DSD |
|
Maximum broadband transmission |
225MHz |
|
Maximum transfer rate |
2.25 Gbps |
|
Input cable length |
≤15 m AWG26 HDMI standard cable |
|
Output cable length |
≤ 25m AWG26 HDMI standard cable |
|
HDMI input port |
2 |
|
HDMII output ports |
2 |
|
Maximum working current |
500mA |
|
Power adapter Specifications |
Input :AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
|
Operating temperature range |
(-15 to +55℃) |
|
Operating humidity range |
5 to 90%RH (non-condensing) |
|
Size |
128 x 53 x 20 (mm) |
|
Weight |
140g |
