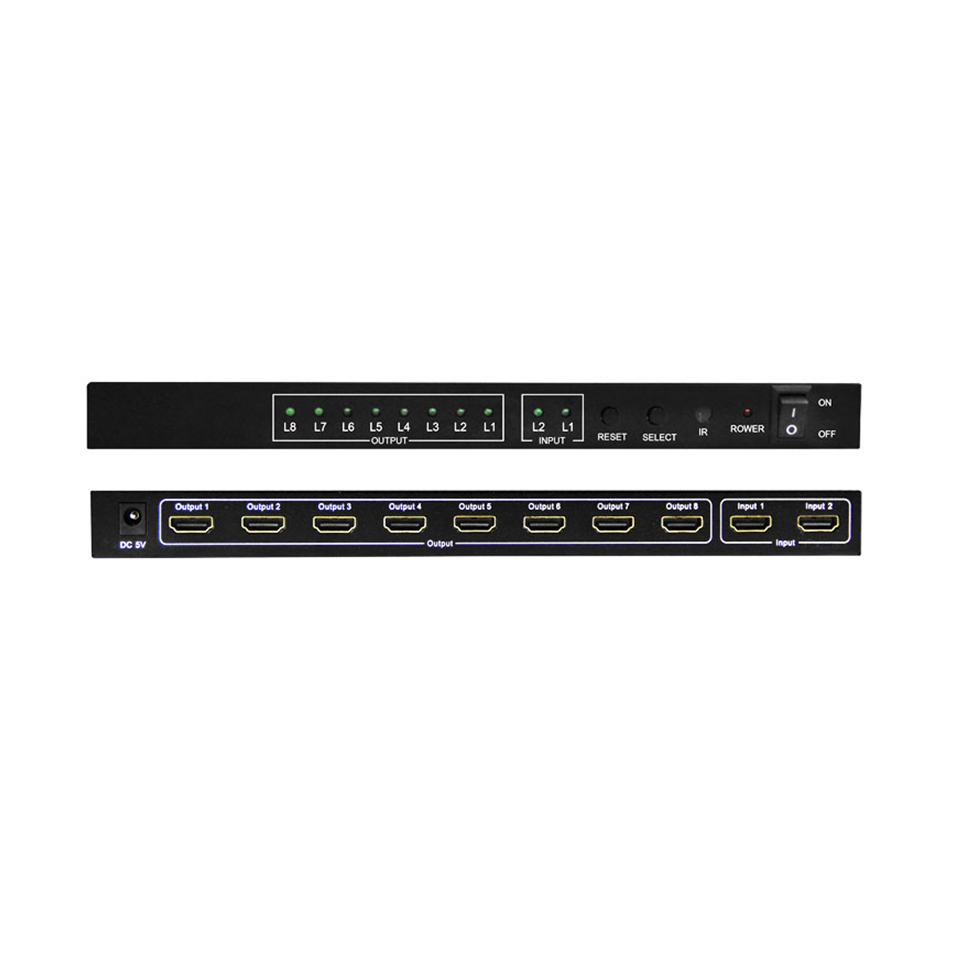

- 2X8 HDMI Switching distributor
The 2X8 HDMI switching splitter can connect 2 HD signal sources to 8 HD display terminals. It can easily distribute the HD signals generated by 2 HD signal sources to 8 HD signal supporting monitors or projectors. It can also amplify the HDMI signal. The two signal sources can be switched arbitrarily. The highest resolution this HDMI splitter can support is 1080P/60HZ.
● Support HDMI 1.4A version
● 3D video format is supported
● Support a maximum resolution of 1080p/60Hz
● The TMDS clock is 225Mhz when the maximum speed is 2.25G
● Support 8/10/12 bit dark colors
● Support the use of standard AWG26 cable, input transmission distance of up to 15 meters, output transmission distance of up to 25 meters
● Support A single signal display, allocated to multiple outputs, such as input to DVD players, A/V receivers, set-top boxes
● 5V/3A power adapter
|
HDMI version |
HDMI 1.4a |
|
HDMI resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Video formats supported |
8/10/12-bit dark colors |
|
Audio formats supported |
DTS-HD/Doldy-trueHD/DTS/Doldy-AC3/DSD |
|
Maximum broadband transmission |
225MHz |
|
Maximum transfer rate |
2.25 Gbps |
|
Input cable length |
≤15 m AWG26 HDMI standard cable |
|
Output cable length |
≤ 25m AWG26 HDMI standard cable |
|
HDMI input port |
2 |
|
HDMII output ports |
8 |
|
Maximum working current |
500ma |
|
Power adapter Specifications |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A |
|
Operating temperature range |
(-15 to +55℃) |
|
Operating humidity range |
5 to 90%RH (non-condensing) |
|
Size |
216 x 93 x 20 (mm) |
|
Weight |
530g |
